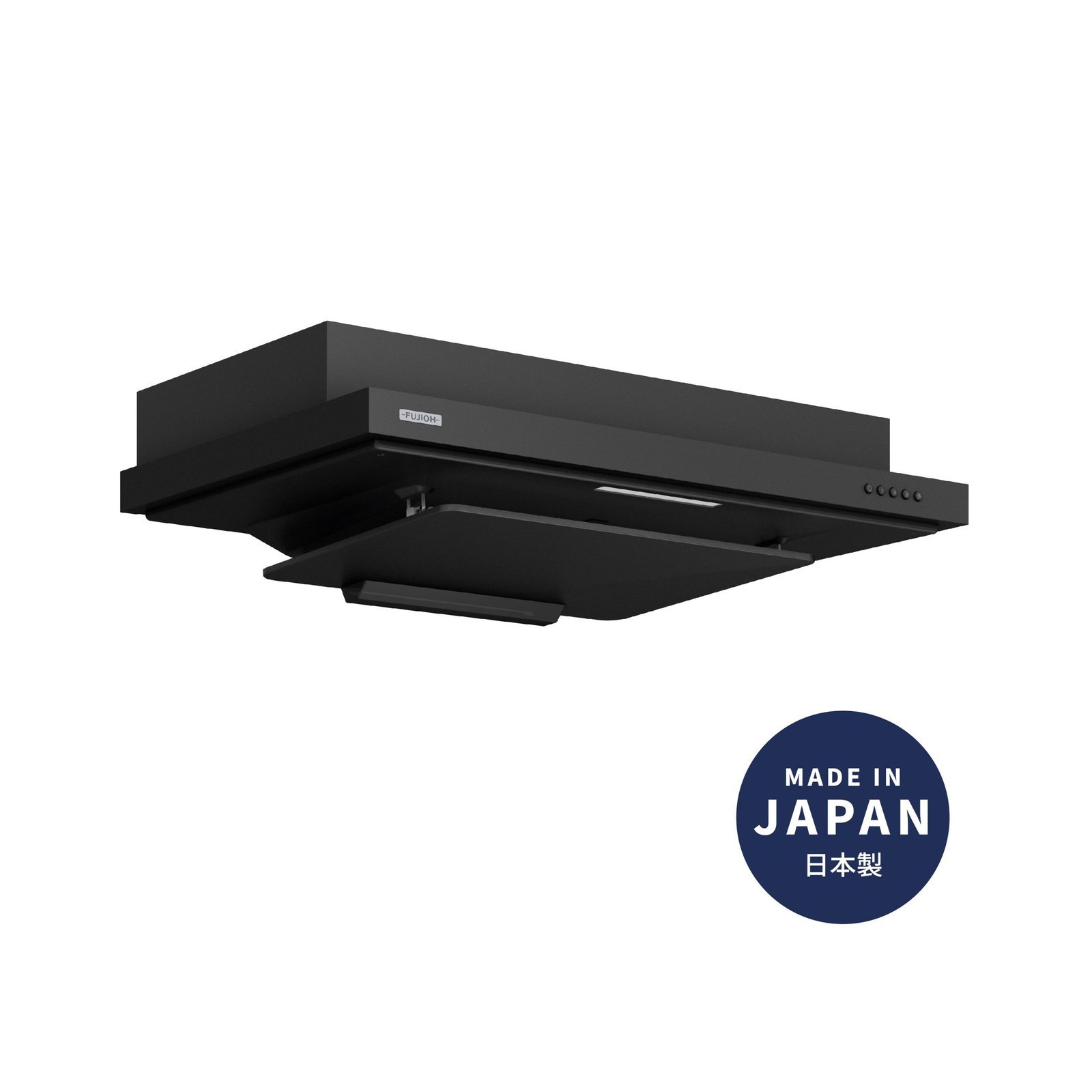

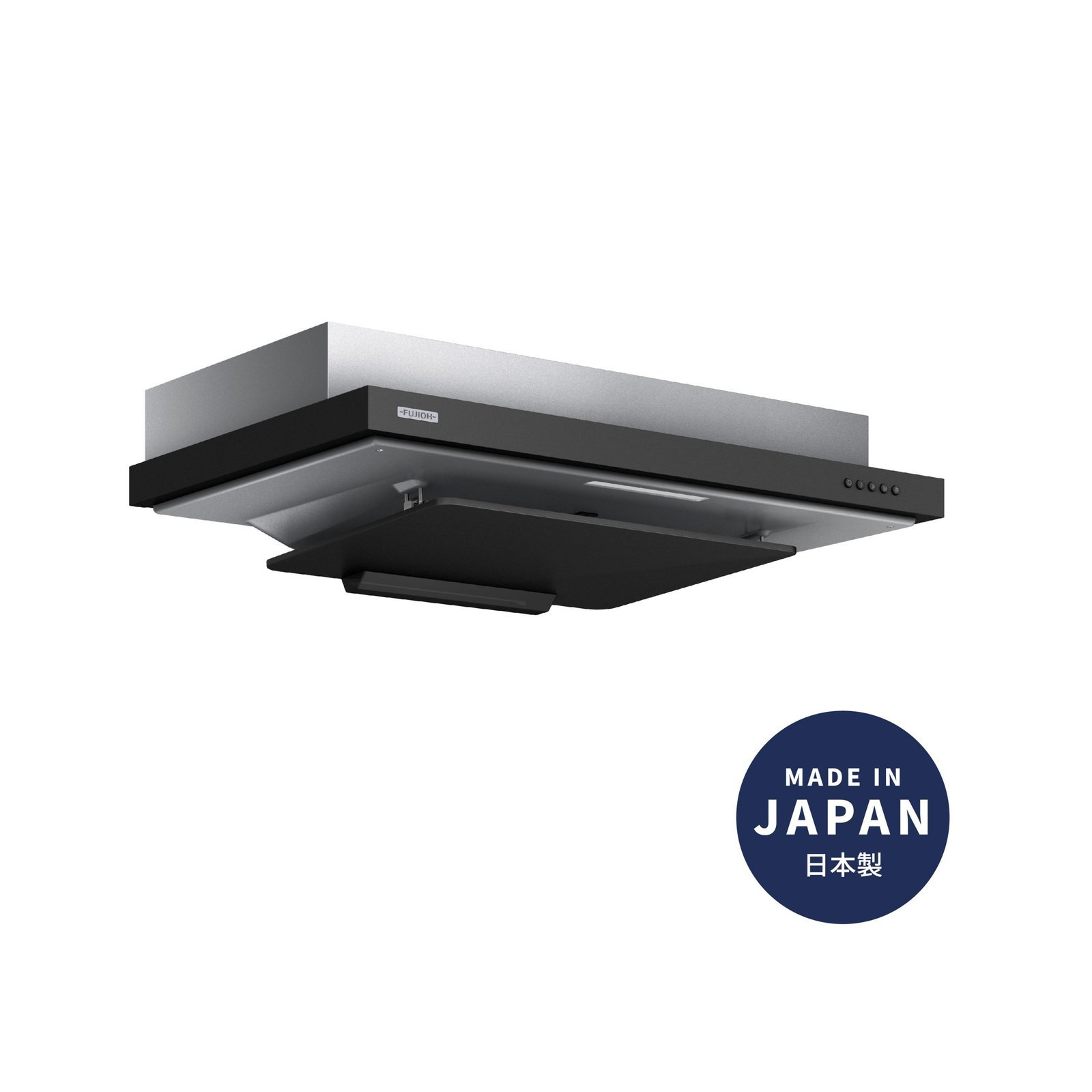

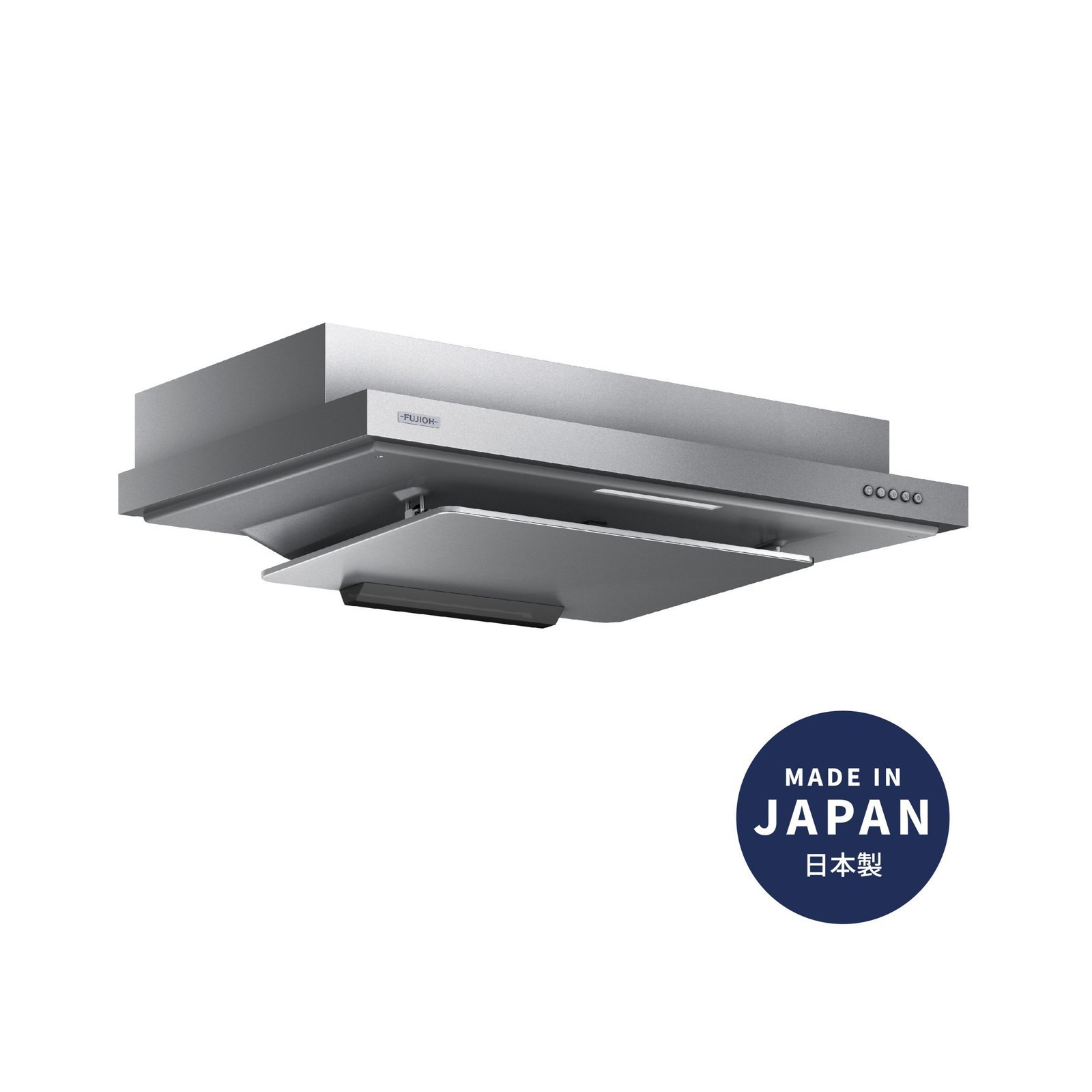

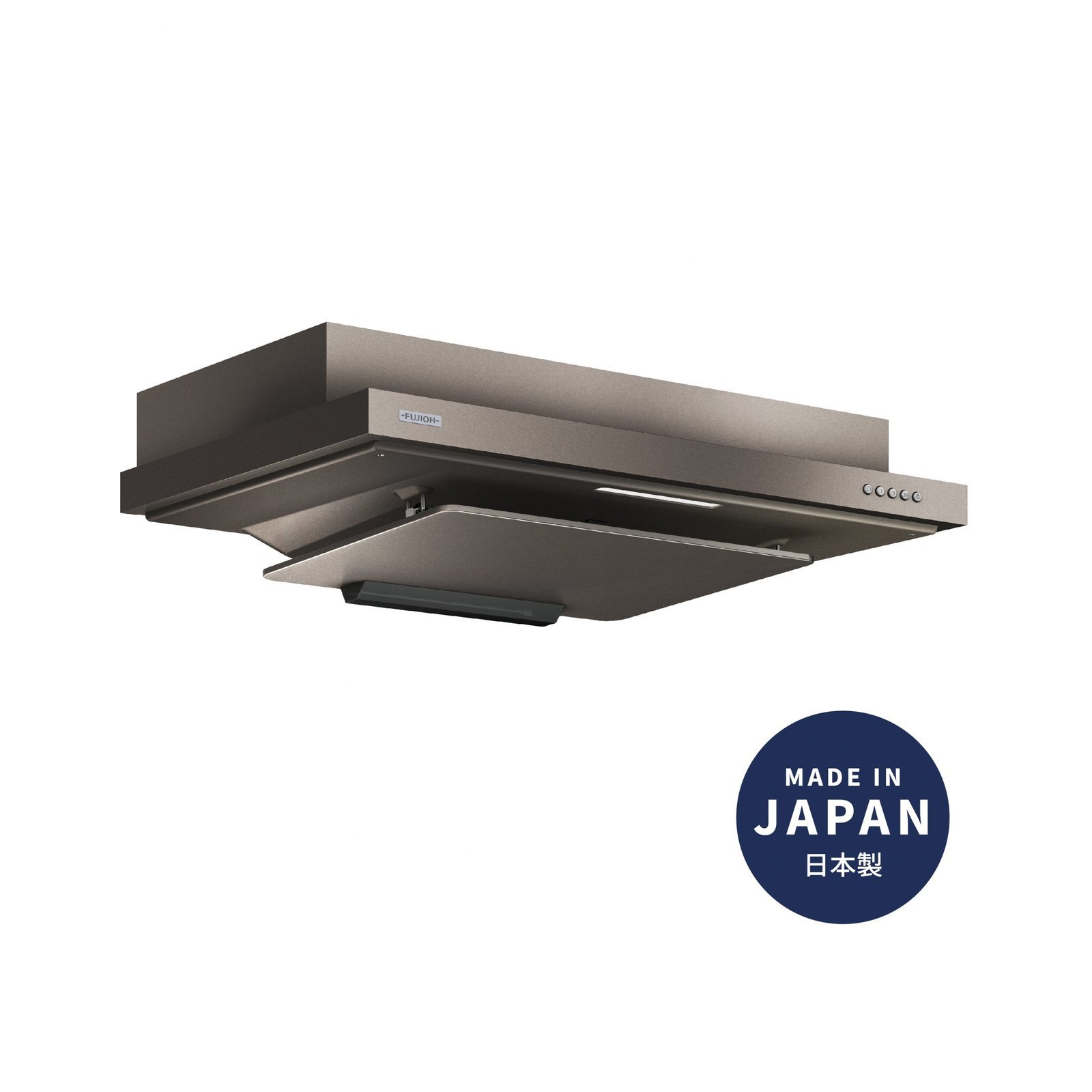

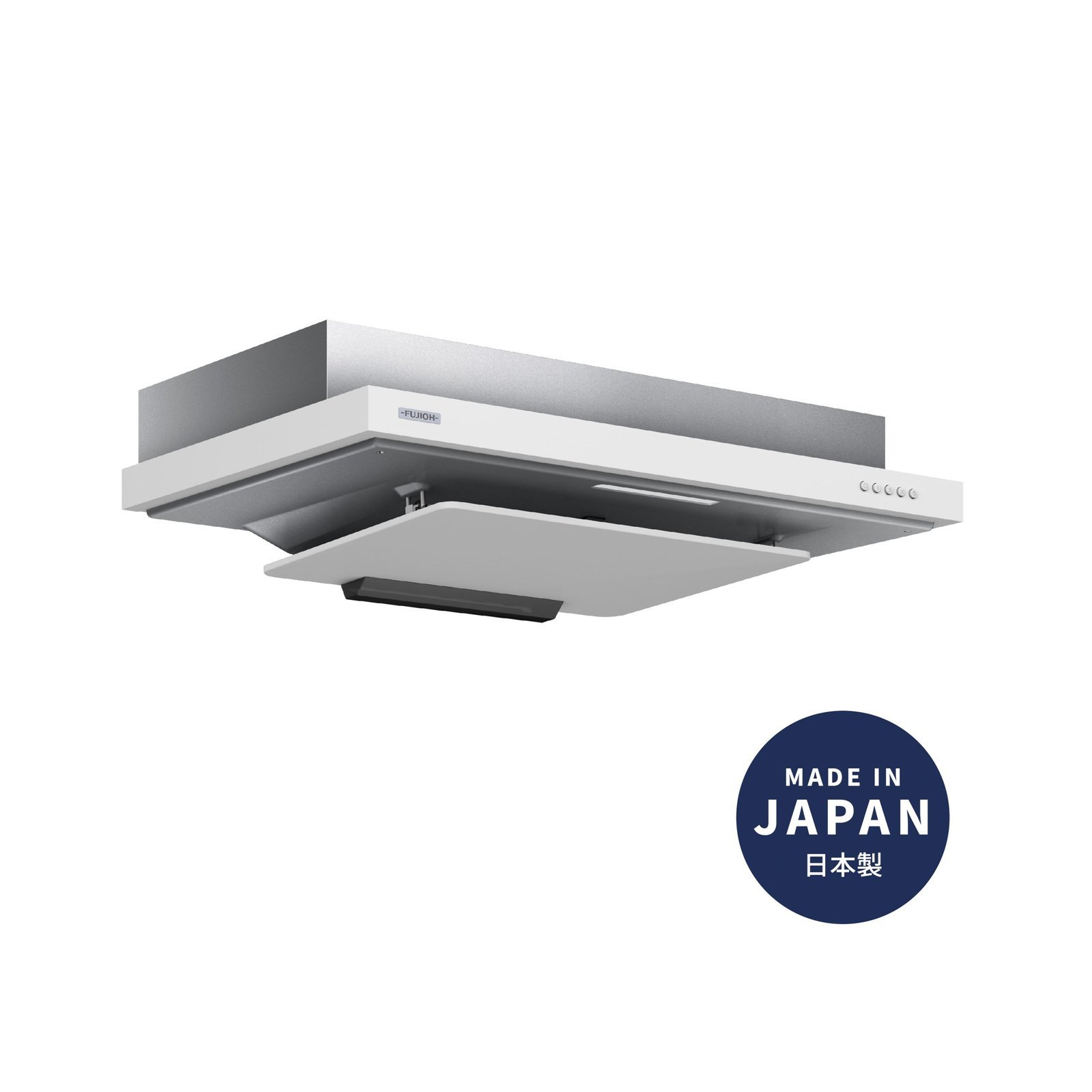

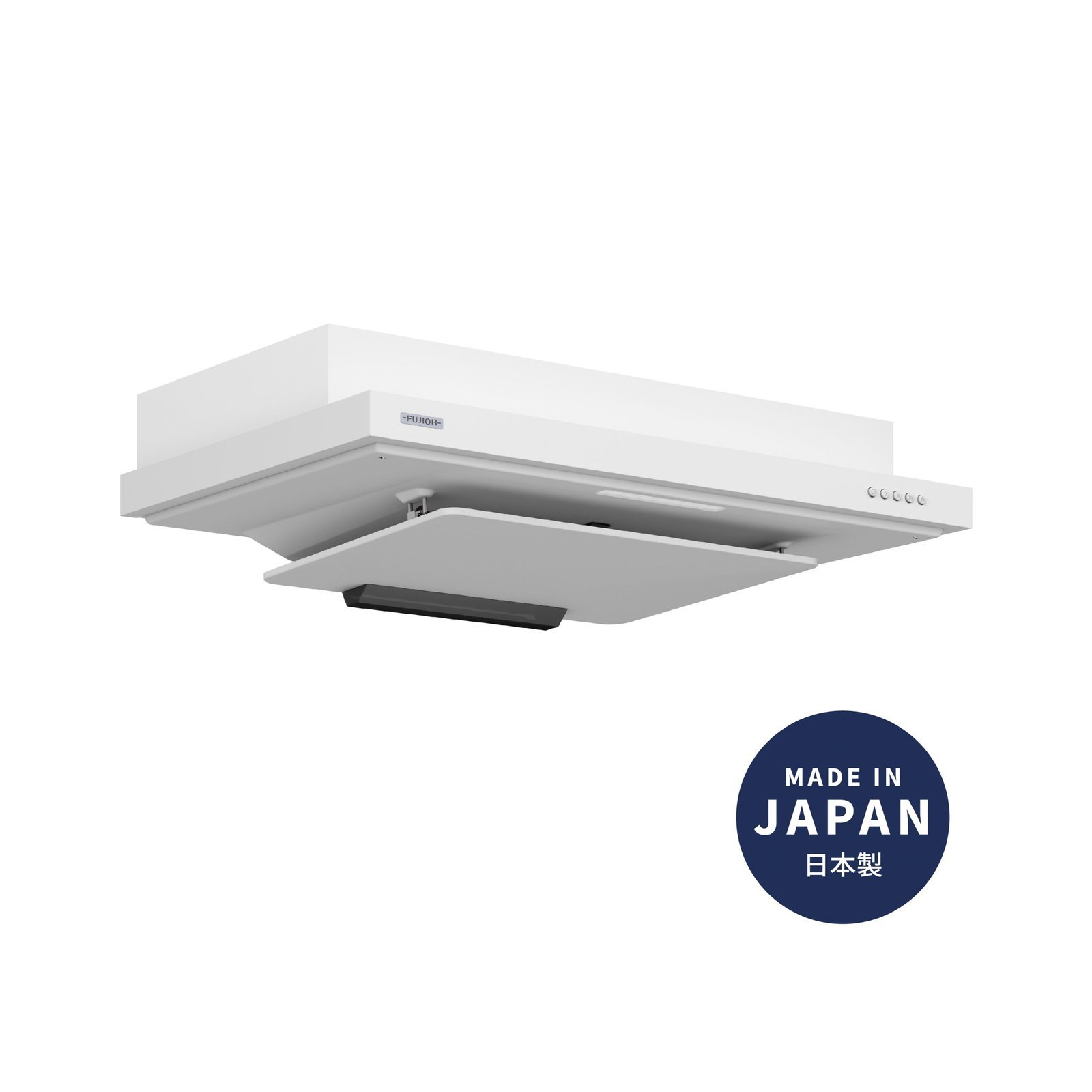

FUJIOH FR-FS2290 RP-1
| Models | FR-FS2290RP | FR-FS2290VP |
|---|---|---|
| Type | Recycling | Ventilation |
| Material | (Body) Galvanized Steel | (Body) Galvanized Steel |
| Dimensions [mm] | W890 x D550 x H150
(Please allow another 20mm height for power cable extension above the hood) |
W890 x D550 x H150 |
| Weight [kg] | 18 | 17 |
| Power Consumption [W] (220/230/240V) | 90/95/100 | 105/110/115 |
| Voltage [V/Hz] | 220-240/50 | 220-240/50 |
| Duct Diameter [mm] | – | 150 |
| Air Flow [m3/h] (220/230/240V) | 395/400/405 | 545/555/565 |
| Sound Level [dB] (220/230/240V) | 53/53/53 | 50/51/52 |
| Oil Capturing Ratio [%] | 92 | 88 |
| Switch | Mechanical Push Button | Mechanical Push Button |
| Speed | 3 Speeds | 3 Speeds |
| Hood Body | Oil Repellent Paint | Oil Repellent Paint |
| Fan | Sirocco Fan with Super Kirei Coating |
Sirocco Fan with Super Kirei Coating |
| Rectifier Panel | Oil Repellent Paint | Oil Repellent Paint |
| Filter | Double Aqua Slit Filters Hydrophilic Coating |
Aqua Slit Filter Hydrophilic Coating |
| Oil Tray | Plastic | Plastic |
| Motor | AC Motor | AC Motor |
| Lighting | LED 3.5W x 1 | LED 3.5W x 1 |
